5×10 Polycore Enclosed Trailer – Diamond Cargo

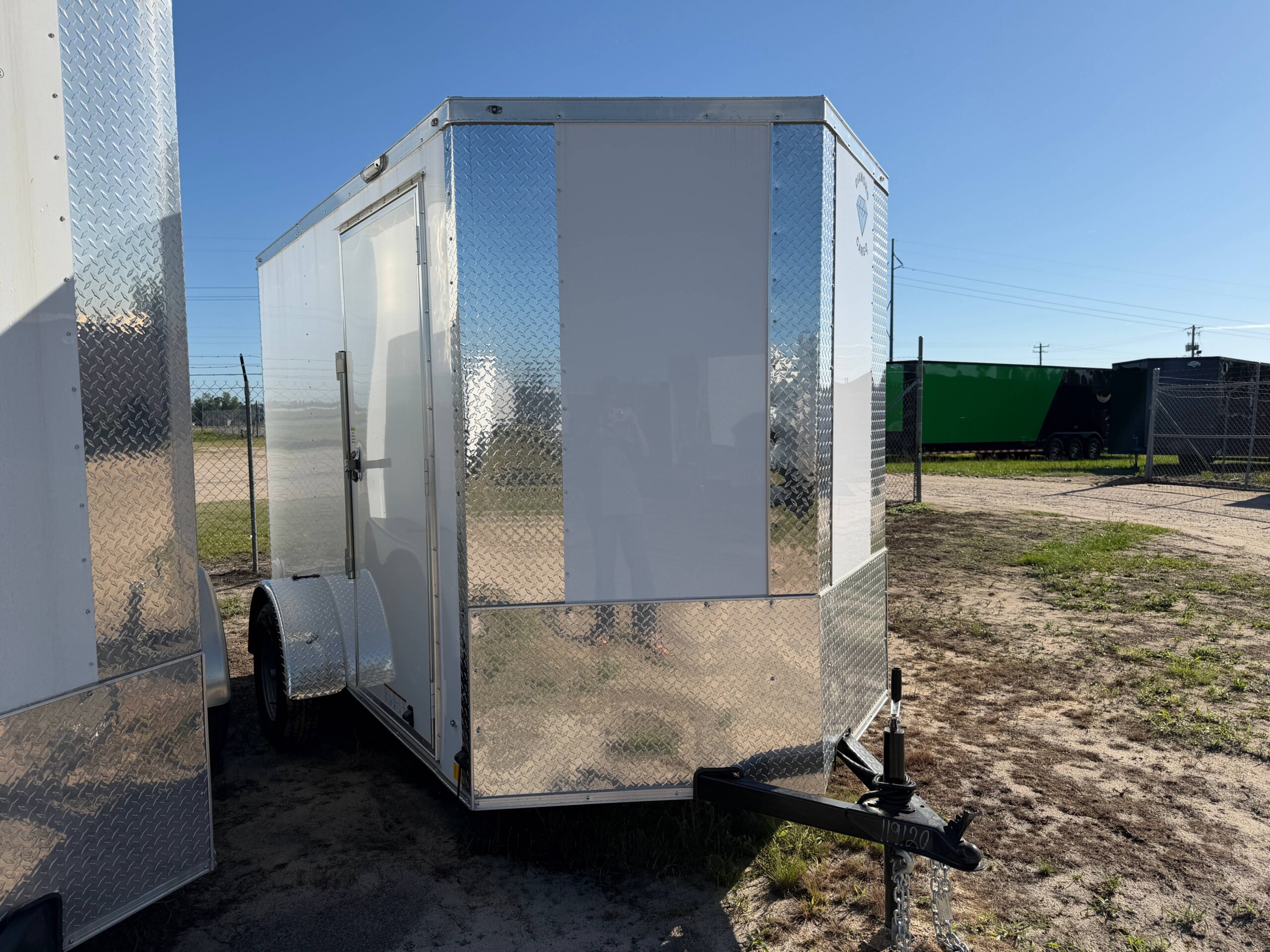

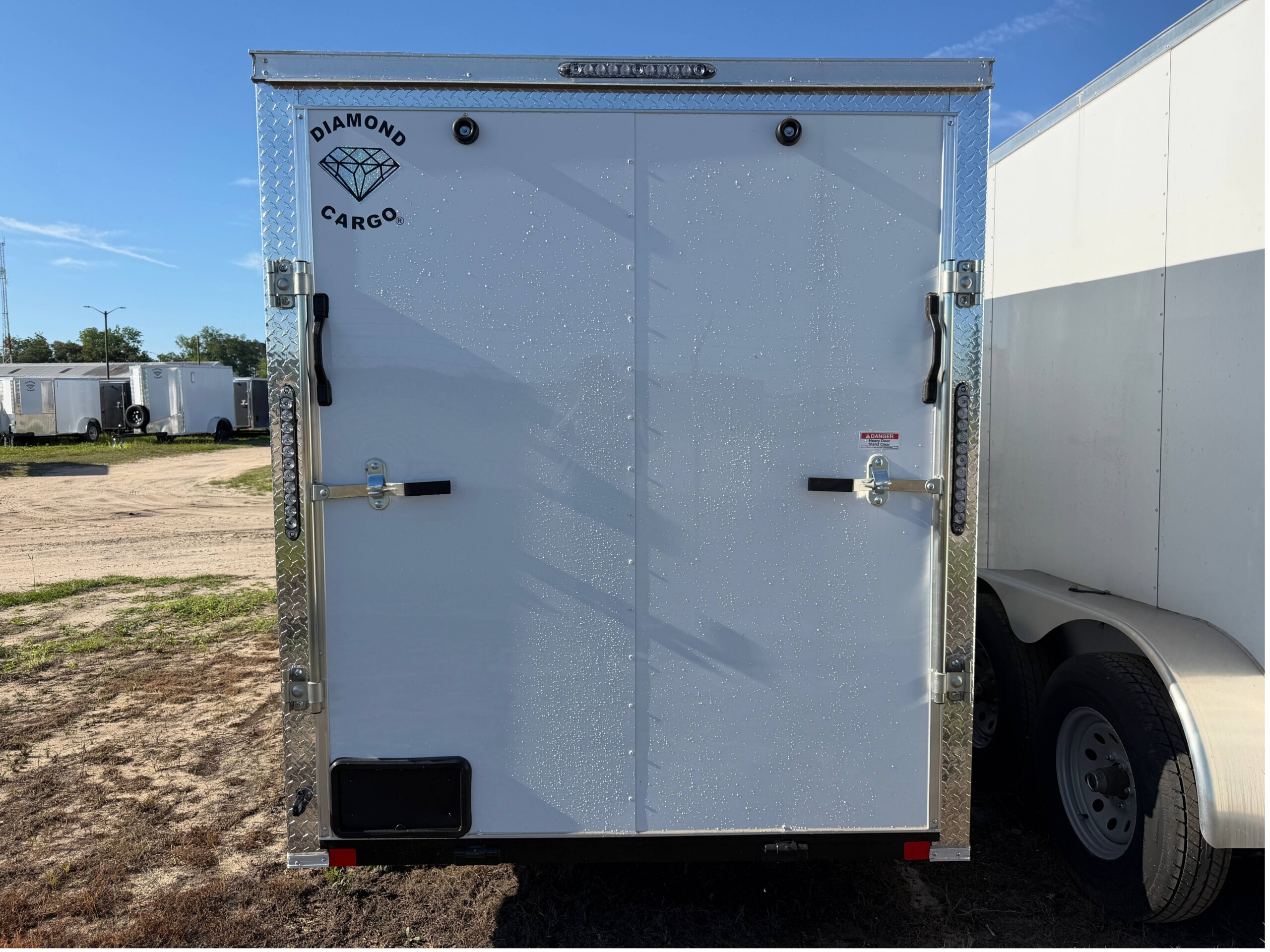

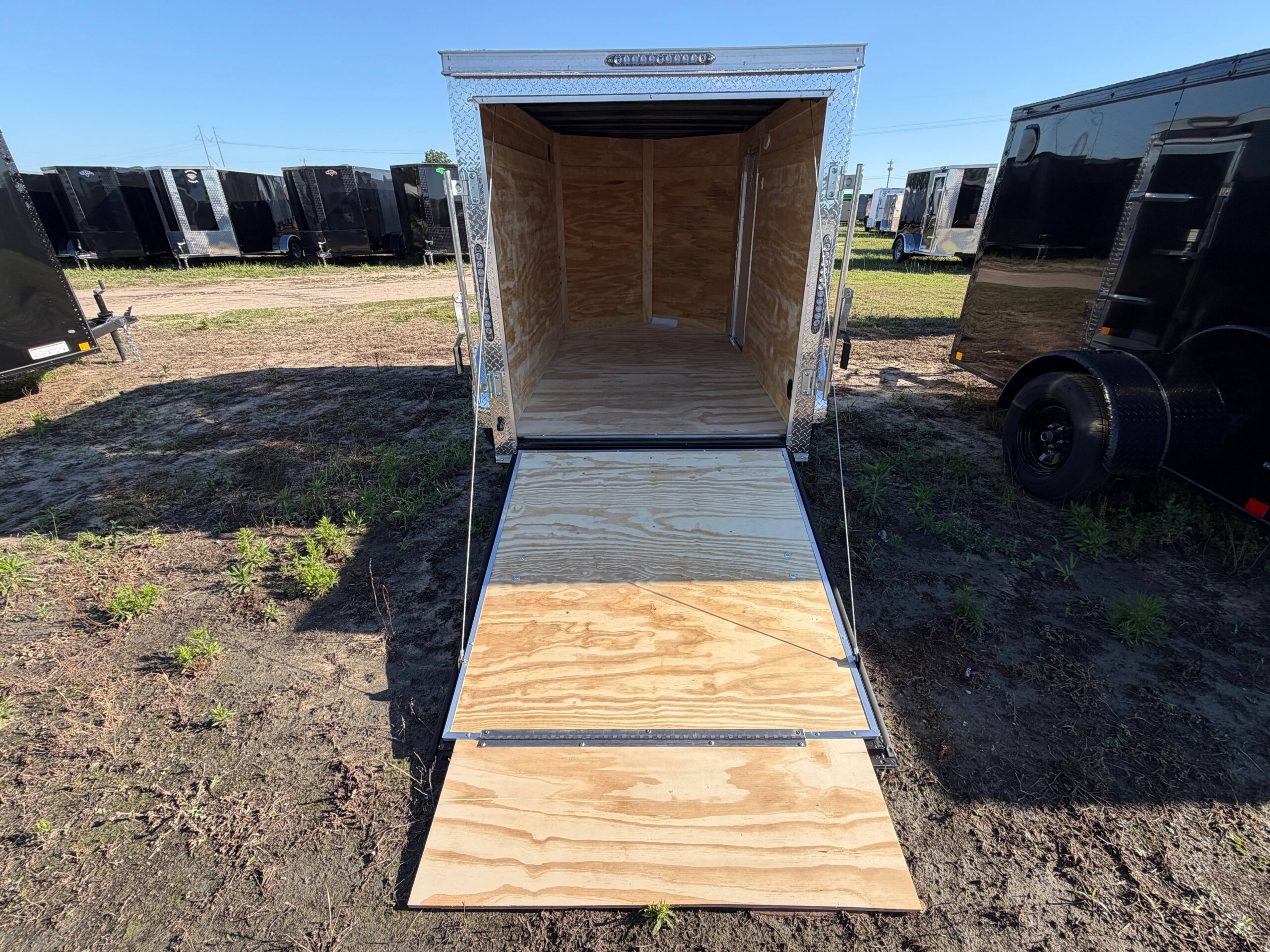

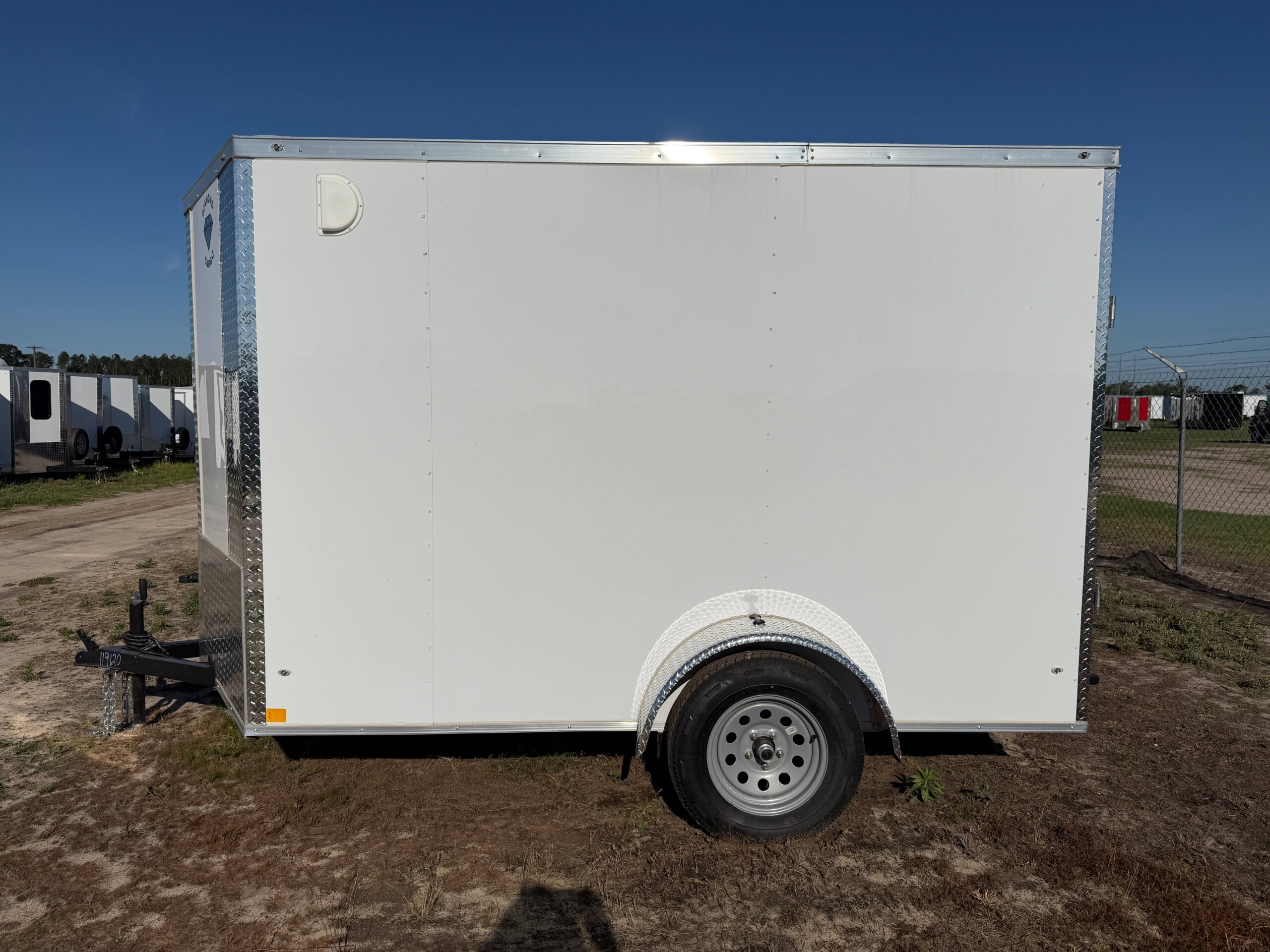

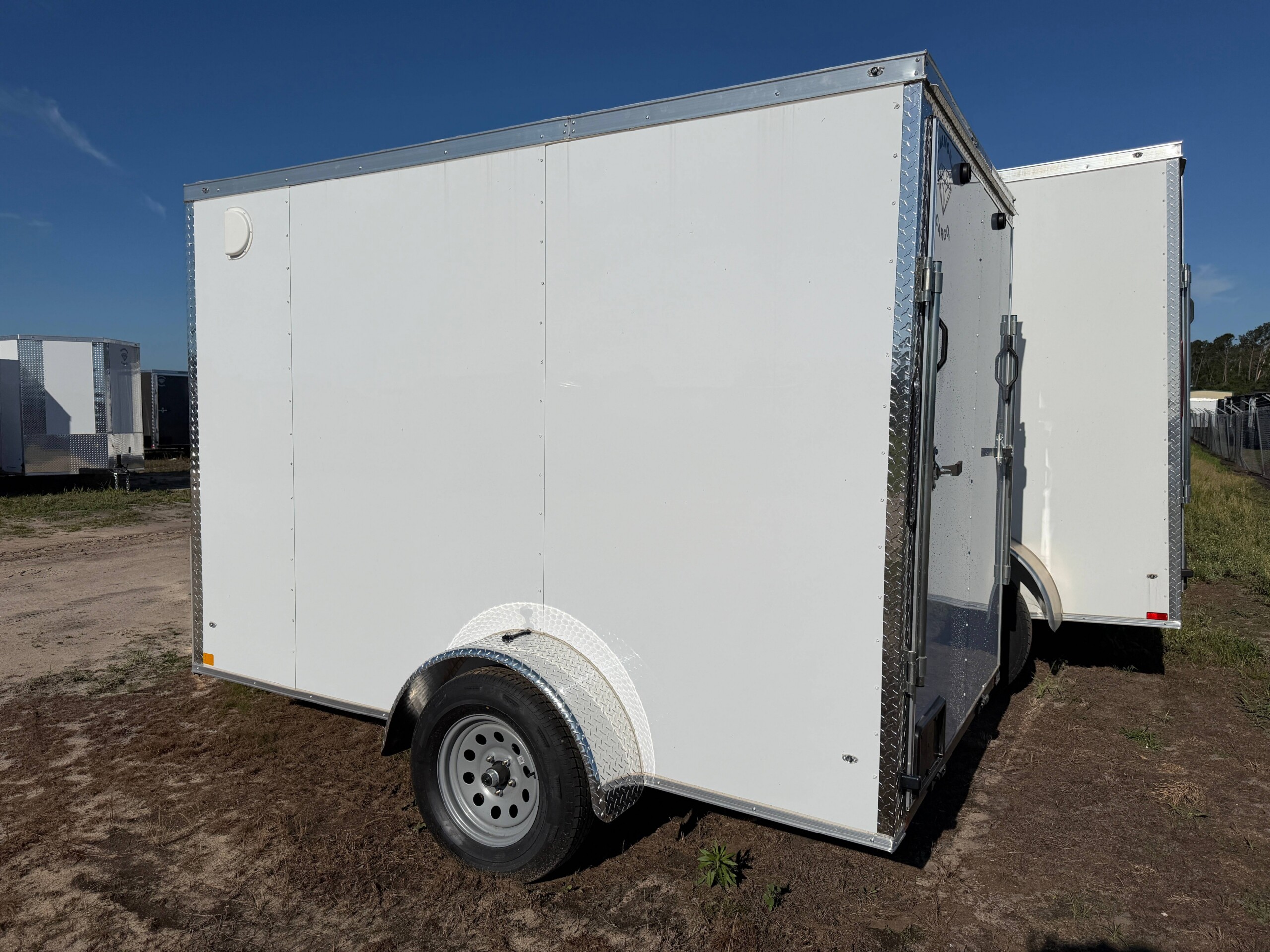

Diamond Cargo 5x10 enclosed cargo trailer with Polycore exterior, V-nose design, ramp door, LED lights, and silver modular wheels.
Diamond Cargo 5x10 enclosed cargo trailer with Polycore exterior, V-nose design, ramp door, LED lights, and silver modular wheels.
5x10 Polycore Enclosed Trailer - Diamond Cargo - Image 3
5x10 Polycore Enclosed Trailer - Diamond Cargo - Image 4
5x10 Polycore Enclosed Trailer - Diamond Cargo - Image 5
5x10 Polycore Enclosed Trailer - Diamond Cargo - Image 6

Call Us
Financing
Rent to Own

Request a Quote

  • This field is for validation purposes and should be left unchanged.

Description

5 X 10 SA Enclosed Cargo Trailer

Diamond Cargo

DC-5X10SA-R

$3,045

Features Include:

.080 Polycore Exterior Semi-Screwed Exterior Finish
60″ Interior Height (5′) Galvalume Roof
V-Nose Design 24″ Stoneguard
ATP Fenders 3″ Steel Tube Main Frame
16″ On-Center Floor Members 16″ On-Center Wall Members
16″ On-Center Roof Members 2,990 lb Drop Leaf Spring Axle
ST205 15″ Radial Tires Silver Modular Wheels
E-Z Lube Hubs 2″ Coupler
2,000 lb A-Frame Jack w/ Sand Foot 3/4″ Plywood Floor
3/8″ Plywood Sidewalls Therma-Ply Ceiling
(1) 12V Dome Light Full LED Light Package
Rear Loading Light Flat 4-Way Trailer Plug
Ramp Door w/ Flap (2) Rear Door Handles
Plastic Side Wall Vents Door Hold Back
Overall Length: 13’10” Overall Width: 82″
Overall Height: 79″ Interior Length: 10′ + 2′ V-Nose
Interior Width: 56″ Interior Height: 60″
Rear Door Opening: 51″ Wide x 54″ High Hitch Height: 17″
GVWR: 2,990 lbs Curb Weight: 1,160 lbs
Payload Capacity: 1,830 lbs Ball Size: 2″

Perfect for lawn equipment, ATVs, motorcycles, landscaping equipment, camping gear, and small business hauling. The 5×10 floorplan offers additional cargo space while remaining lightweight, easy to tow, and economical.

Additional information

VIN

DC-5X10SA-R

Reviews

There are no reviews yet.

Be the first to review “5×10 Polycore Enclosed Trailer – Diamond Cargo”

Customize Your Trailer Today!

Add Height

Standard interior height is 6 ft. 3″ with a ramp opening of 69″. Pro tip: Add a few extra inches for the ramp angle so your equipment will fit. Get a sleek look by adding .030 gauge

Color Choice

Type your color choice in the box. Colors marked premium require a metal upgrade.

Aluminum Sides

Standard aluminum thickness is .024 gauge. Looking for a new look? Upgrade to a thicker gauge. Shop our standard colors: Black, White, Silver, Red, Charcoal Gray, and Pewter or see the chart above for our new premium colors.

Semi Screw Less

Upgrade your trailer to our pro line series by adding semi screw less and thicker aluminum. Eliminating screws and adding a thicker gauge will set you apart from the competition!

Popular Options

RCT Blackout Package

RCT's Blackout Package offers black trim and mod wheels. (This option does not include upgraded wheels or aluminum sidewalls). This is the perfect option if you are not quite ready to make the "Blackout Special" leap.

Black Diamond Plate (BDP)

Interior

Shop interior options. These options require additional build time but trust us when we say that they are worth the wait!

LED Rear Lights

Light up the darkness by adding dual LED tail lights. One of the best upgrades to help light up the rear when backing in or out of a tight spot at night.

12 Volt Lights

This upgrade runs on 12 volt power from the tow vehicle plug. Just enter the number needed, we’ve got the best price on the market for interior lighting. Pro tip* If you are brightening up your life on the inside make sure you think about exterior loading lights as well. What a difference these puppies make at the end of a long day!

Jacks & Stabilizers

What a difference support makes! Do not load items into a trailer that is not attached to a tow vehicle. Shop stabilizer jacks so that load time can start as soon as the job is done.

E-Track

Secure your content with the versatile e track. E track is priced by the individual foot so enter the total number of feet needed and we’ll do the rest. Secure items to the wall or floor in one easy upgrade. (E-Track is not meant to be install on any doors or ramps).

E-Track Wall - How Many Feet?

D-Rings

Standard trailers include 4 floor D-rings to secure your load but sometimes more is needed. We install extra on the floor or wall. The price is for each so enter the number needed. 5k capacity bolted to one strong steel plate!

D-Rings Wall

Upgrade Wheels

Upgrade your wheels from the standard steel and silver look.

Spare Tire

Spare tires are a must in the enclosed trailer world. A tire mount will keep your tire secure and store it so you can find it when you need it most. This is an upgrade you won’t want to pass up.

w/ Aluminum wheel for 3500 lb.

Air Vents

Allow air flow and help keep the trailer cooler. This is a game changer in trailer upgrades world and a definite must.

Max Air Roof Vent Cover
2- Plastic Side Vents
2 – Aluminum Side Vents

Ladder Racks

Are you in construction? This is one of the most popular and convenient upgrades in the contractor world. Price is per section and requires at least 3. Load rating is 200 lbs.

Doors

Add or upgrade your side doors! This makes entering and exiting the trailer a breeze, especially if you have multiple workers on the site.

Doors & Windows

Enter number needed. Price is for each. These are the most popular door and window upgrades.

($835.00/1 unit)

Electrical Package

Powers the A/C and 110 outlets. Requires generator or electricity. Additional build time with option. Electric Package = 60 amp panel box, 2 receps, 1 switch, 2- 2 ft. Led lights, 25 ft. cord.

Air Conditioner

Cool your trailer in seconds. *Must have the electrical package. See the electric package below. Pro tip; add wall and ceiling insulation (see interior) to quickly cool your trailer.

110 Volt

The 110 volt upgrades need the electric package and electricity. Allow additional build time for this option.

($115.00/1 unit)

Race Package

The Race Package includes:
ATP/RTP Floor Cover with Ramp and Flap
White Metal Walls
White Metal Ceiling
Base Cabinets
Overhead Cabinets
(2) Recessed LED Lights
(2) Rear Exterior Loading Lights
Electrical Package (2 LED Lights, 2 Receptacles, 60 Amp Box w/ Lifeline, 1 Switch)

$3,045.00
